uCell B80

uCell B80

Pallet and Electrode Transfer Automation System

Makino’s uCell B80 automation system addresses the evolving needs of die & mould manufacturers. As the availability of skilled machine operators continues to decline, the industry – once defined by craftsmanship – faces an ongoing shortage of expertise. This shift has led to a growing demand for lean, automated production with minimal human intervention. The uCell B80 supports manufacturers by streamlining and simplifying even the most complex machining processes.

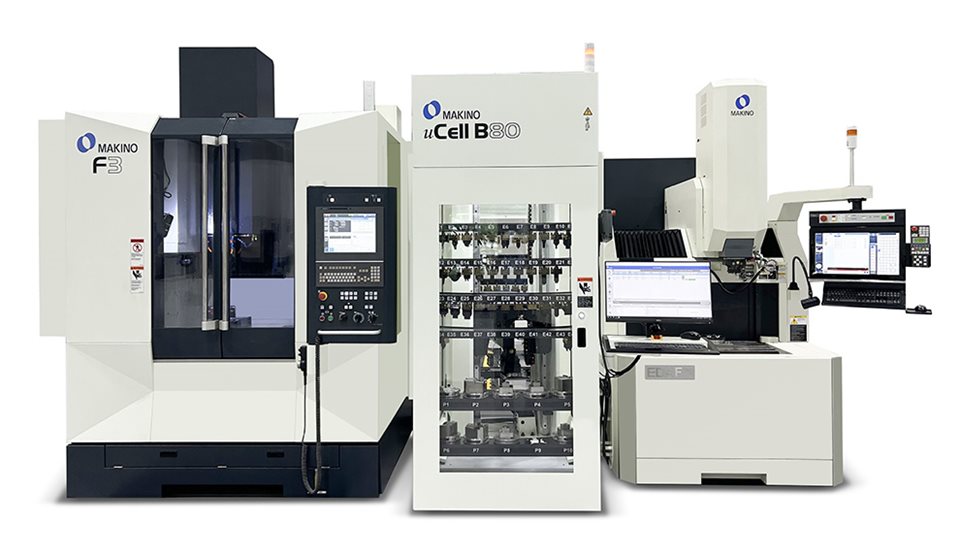

Comprehensive Automation That Lowers Costs

Makino’s uCell B80 is a compact, 1-metre-wide automation cell for vertical machining centres (VMCs) and sinker EDMs. Fully customisable, it supports a range of part and electrode setups to meet specific production needs.

A robotic arm loads parts into the VMC or EDM, and electrodes into the EDM, with automatic hand exchange for different chuck sizes. The user-friendly design features large doors for easy access and wide front and rear windows for clear visibility.

The uCell B80 can serve one or two machines and is controlled by Makino’s advanced cell controller. It operates flexibly as either a master or slave system.

Request a quote
Comprehensive Automation That Lowers Costs

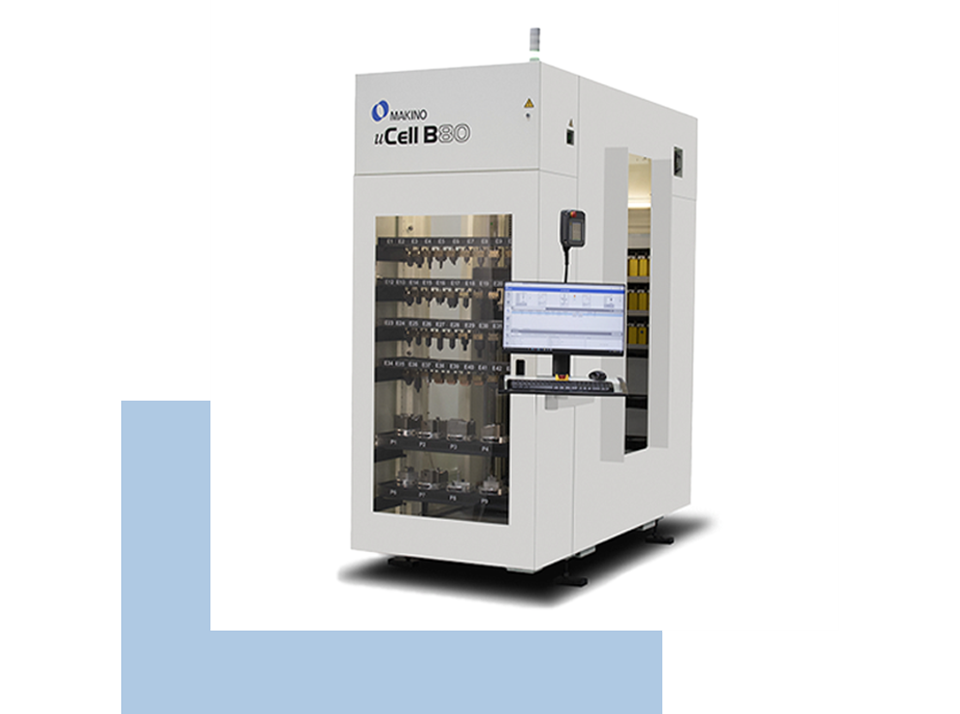

Key Features at a Glance

Box-type polar coordinate robot

For precise pallet and electrode holder transfer, with a maximum payload of 80 kg


Space-saving footprint

Just 1,000 mm x 2,230 mm, ideal for twin-machine automation without requiring additional floor space


Flexible integration

Compatible with any combination of vertical machining centres (VMCs) and sinker EDM machines
Key Features at a Glance

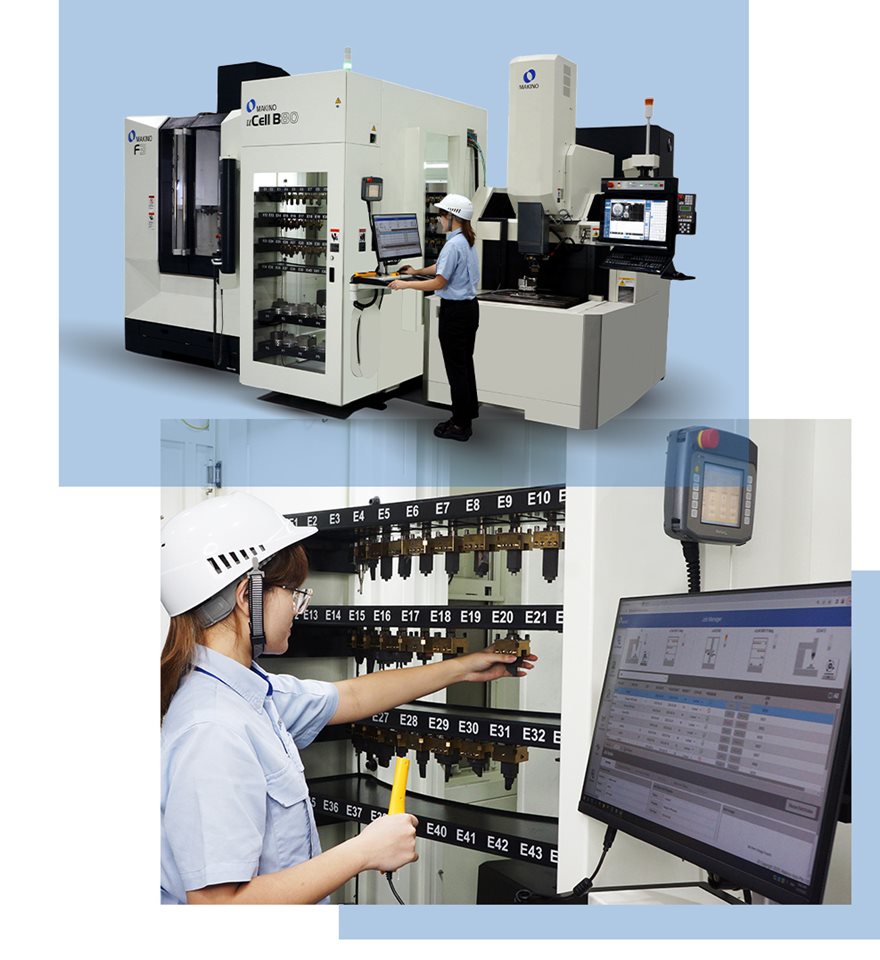

Integrated System, Operator-Focused Design

Plug & Play Integration

The uCell B80 is designed for rapid deployment and minimal installation effort.
  • Self-contained cell controller: Industrial PC, built-in network switch and backup power supply ensure stable operation
  • Built-in operator panel: Featuring a 24” LCD screen, keyboard and mouse
  • Pre-installed software: Makino’s Cell Manager comes fully configured to customer-specific production workflows


User-Friendly Operation

Practical design ensures smooth operation and maximum ease of use.
  • Optimised layout: Generous working area and clear operator access, especially important for EDM applications
  • Effortless door handling: Open the cell with one hand at the push of a button
  • Fail-safe magazine: Manual electrode loading/unloading is quick, safe and foolproof
  • Touch-screen portable panel: Makino-designed user interface for intuitive control of robot and machine chucks
Integrated System, Operator-Focused Design

Smart Connectivity

The uCell B80 is ready for digital integration and modern factory environments.

Integrated network switch
Seamless connection to machines and factory networks

Flexible compatibility
Supports a wide range of industrial networks and fieldbus systems

Industry 4.0-ready
Communication via OPC-UA protocol between robot and Cell Manager
Smart Connectivity

Compact. Intelligent. Scalable.

With its high degree of flexibility, intuitive operation and small footprint, the uCell B80 is the ideal automation solution for toolmakers and manufacturers looking to stay competitive through smart, lean production.
