0.4 mm H.E.A.T. wire

0.4mm wire – the cutting-edge of innovation

Faster, stronger and more reliable: These three words describe the feeling U6 H.E.A.T. Extreme users have after testing the 0.4 mm wire. Although it is true that the 0.4 mm wire limits the corner radius and has a higher purchasing cost, the running costs bring great savings in the long run.
HEAT



Gearbox in aluminium ADC 12




Cutting time with 0.25 mm wire: 60 minutes

Cutting time with 0.4 mm wire: 30 minutes

50% reduction of cutting time
Gear box.jpg

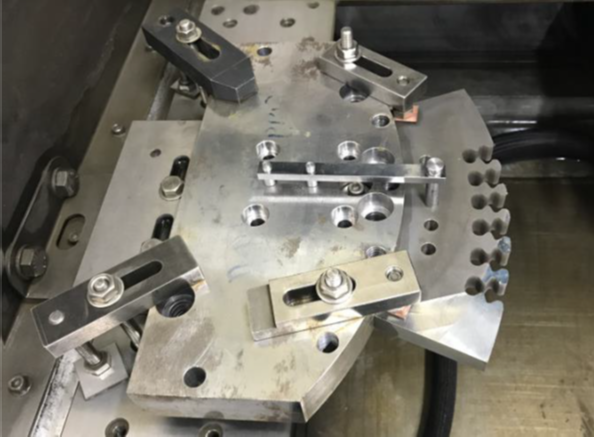

Firtree - Inconel 718 - 15 mm thickness

Cutting time in 0.25 mm wire: 67 minutes
Cutting time in 0.4 mm wire: 28 minutes

Time saving 58%



Fir tree.jpg

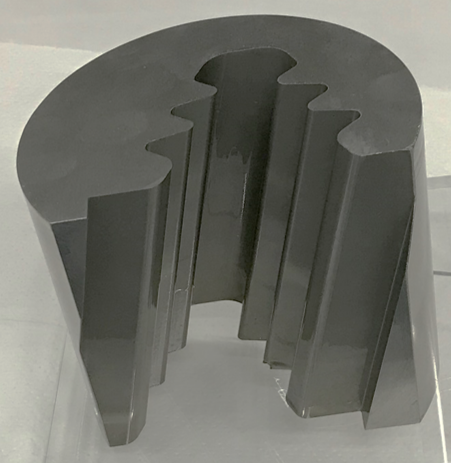

Firtree - Inconel 718 - 100 mm thickness


Cutting time in 0.25 mm wire: 7 hours 47 minutes
Cutting time in 0.4 mm wire: 3 hours 7 minutes

Time saving 60%





Fir tree.jpg

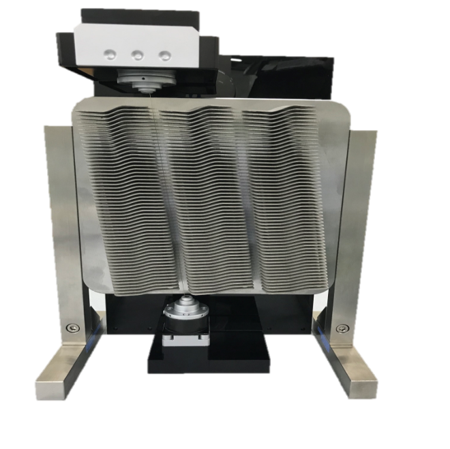

Cut off Additive Manufacturing parts


Easy. precise and fast cutting with the 0.4mm


The cut-off on additive manufacturing parts is a process that with thinner wires tends to break the wire. 0.4 Wire on our Extreme machines are able to sustain the interrupted cut typical of this components.
