U6 Cutting Capability

How far can a U6 go?

The U6 is an extremely competitive machine in the market. What’s more, the set of options on this machine also make it highly customisable to meet specific customer needs:

  • Crystal unit for parts of over 100 mm width
  • U3i and U6i for higher precision
  • Extreme option for faster roughing capabilities

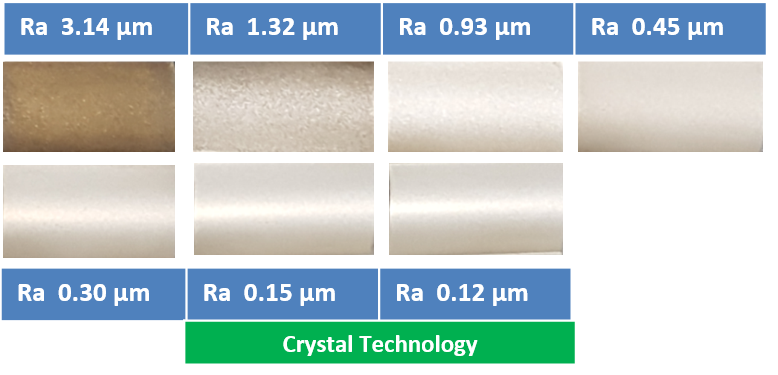

But the capablities of the standard machine should never be forgotten, either. In the photo opposite you can see the surface roughness after sequential cuts using the U6.

Starting from an Ra of 3.14 micron, you can go up to 0.12 micron by using crystal technology. These values, normally only available from dedicated high-precision machines, can be achieved with Makino's U series entry-level machines.

How far can a U6 go?

U6 H.E.A.T.

The U6 H.E.A.T. wire EDM machine provides an ideal mix of speed, accuracy, and surface finish capability with larger travels to tackle the most demanding applications with new levels of user-friendliness and efficiency.  The U6 H.E.A.T. expands on the diverse capabilities of the U6 with enhancements to the flushing and filtration system to boost productivity.

Makino’s Hyper i control adds intuitive and familiar touch Pinch/Swipe/Drag operations similar to smartphones and tablets to the U6 H.E.A.T. machine. The operator is provided with an effective and commanding view of the control with the large 24” class HD touchscreen display, which is further enhanced by a standard mouse and keyboard and fully functional advanced hand box.   The Hyper i control utilises a straightforward 3-step operation process of Program/Setup/Run, and this efficient, user-friendly interface is used for all Makino wire and RAM EDM machines.  The Hyper i control also comes with digital onboard electronic manuals, instructional training videos, and advanced E-Tech Doctor help functions as standard that empower operators with integrated and convenient resources at their fingertips.
U6 H.E.A.T.
U6 H.E.A.T.
