N2-5XA

Compact 5-axis Horizontal Machining Centre

Table of Contents

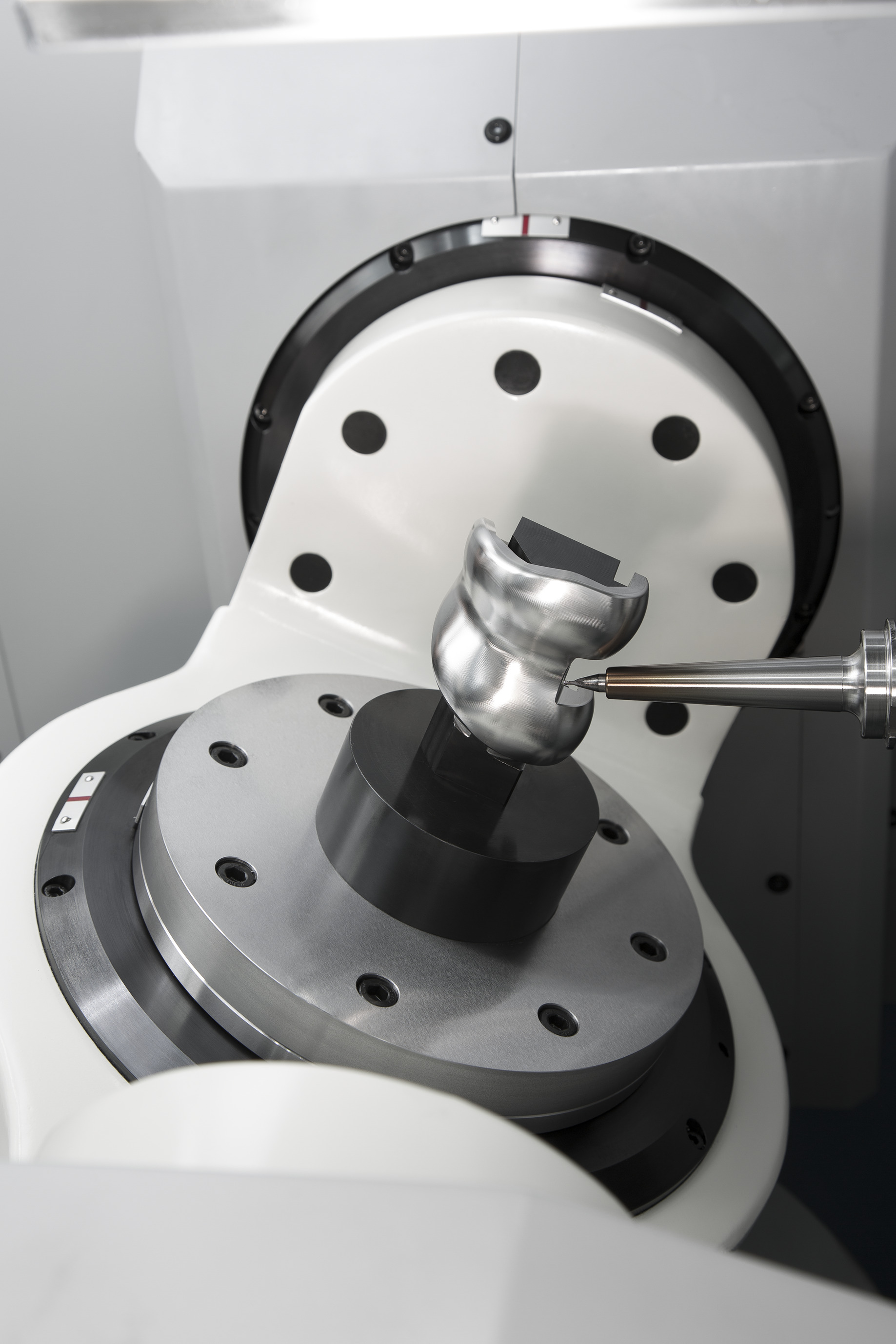

Sustainable performance

Sustainable performance
The N2-5XA was engineered to offer the best performance in its machine size category, without using cutting
oil lubrication. Especially designed for the use in the medical engineering industry, e.g. for femoral knee implants, the N2-5A meets the quality demands for medical use and ensures sustainable performance. Without cutting oil lubrication and thus without using coolant, the process is simplified and helps end-users to reduce their tack times, which in return allows higher production quantities.

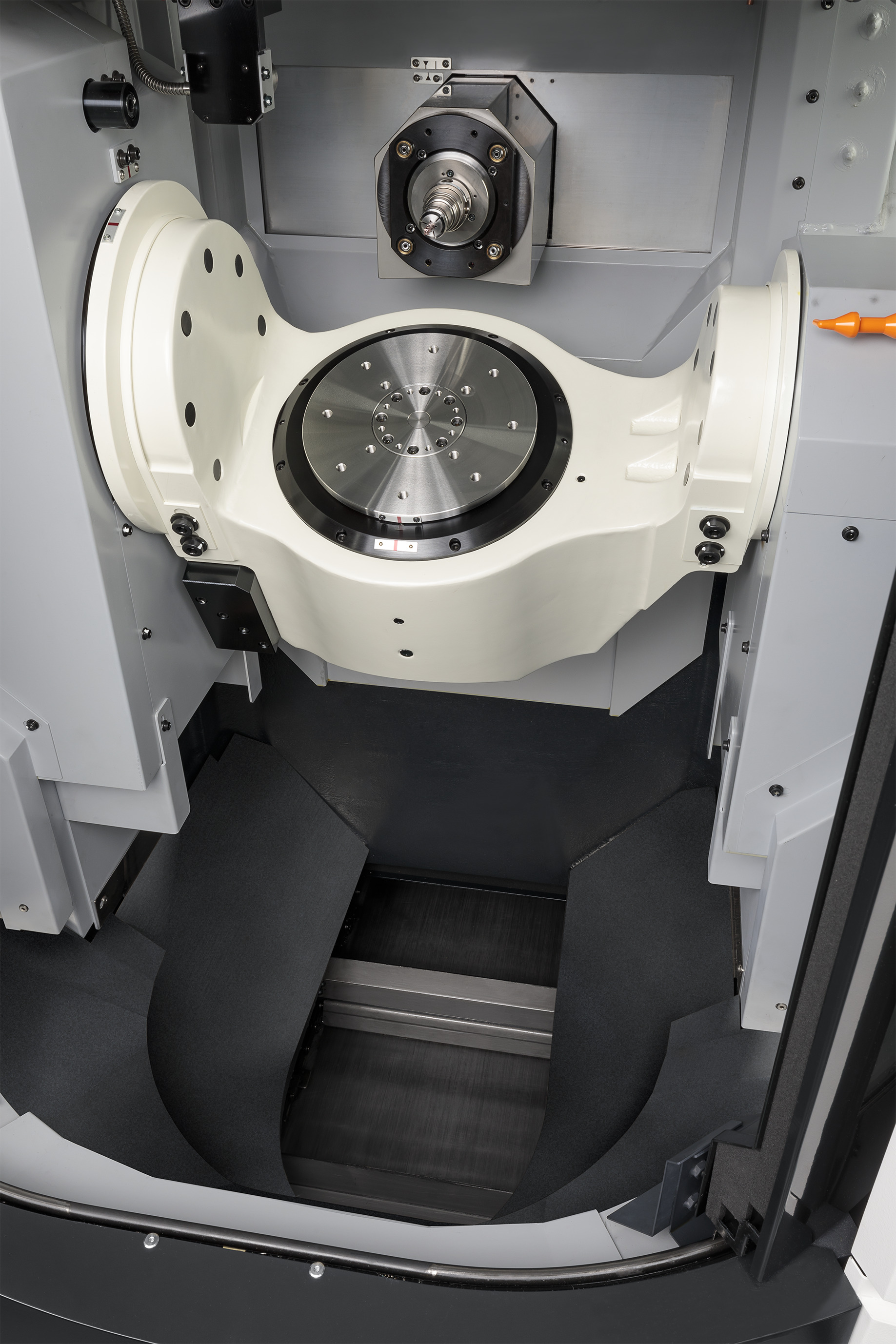

Full flexibility

Full flexibility
Especially for medical implants smooth, surfaces are of utmost significance. To provide the surface
finish the parts need, the N2-5XA is a 5-axis machining centre with a trunnion table equipped with direct
drive motors on both the B and C axis.

The small trunnion structure and the long rotary travels grant the flexibility to access any part from any position. And thus offer full flexibility, not only for implant production.

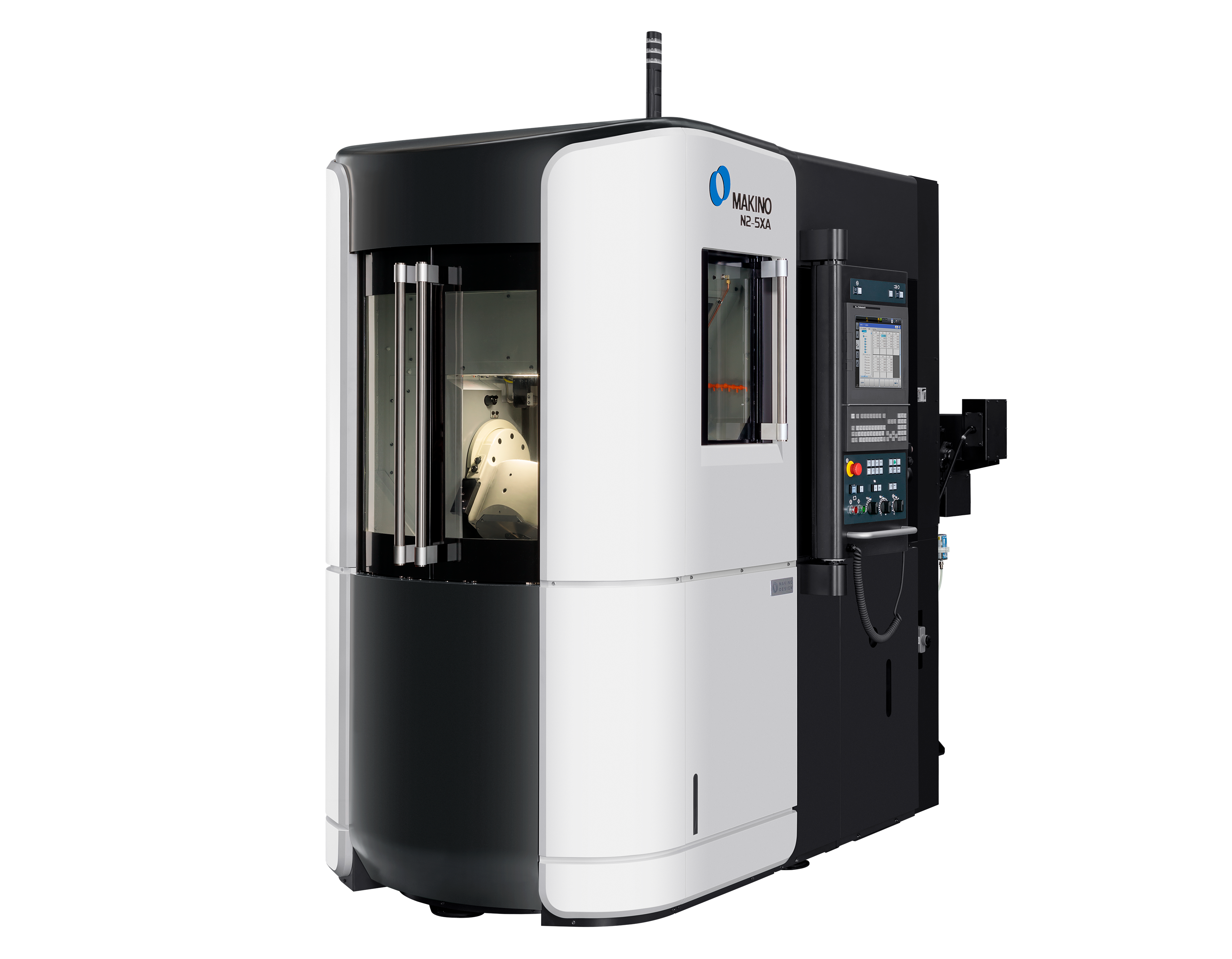

Cost reduction the environmentally friendly way

Cost reduction the environmentally friendly way

The most demanding implants can be cut on the N2-5XA without cutting oil lubrication. By not using coolant this machine is more environment-friendly.

Not using coolant brings the additional benefit of cost savings in production additives.

The machine structure of the N2-5XA with its almost vertical walls and scraper allows effortless chip evacuation. This also reduces the removal, cleaning and maintenance time and minimizes the machines overall downtimes.



Professional 6 control

The N2-5XA features a fully equipped Professional 6 control unit. The smoothing functions of the NC control
unit help to achieve the highest quality surface finishes.

As a standard feature, a collision-safe guard is installed on all Makino machining centres to avoid collisions involving workpieces, tools and fixtures.

Specifications

Travel
X- x Y-axes 300mm
Z-axis 230 mm
A-axis 160°(–120° +40°)
B-axis 360 degree
Spindle
Spindle speed rate 20 20,000 rpm
Output (cont. rating) 3.7 kW
Torque characteristics(continuous rating) 8 Nm
Spindle nose (nominal size, No) HSK-A40
Feedrate
Rapid traverse (X, Y) 42,000 mm/min
Rapid traverse (Z) 56,000 mm/min
Rapid traverse (A) 10,800 deg/min
Rapid traverse (B) 54,000 deg/min
Cutting feed (X, Y, Z) 1 32,000 mm/min
Cutting feed (A) 1 10,800 mm/min
Cutting feed (B) 1 36,000 mm/min
Table
Size 200 mm
Max. workpiece size (diameter x height) Ø 300 x 270 mm
Max. workweight 30 kg
Loading height 1,250 mm
Automatic tool changer
Tool storage capacity 36
Max. tool diameter 50mm
Max. tool length 170 mm
Max. tool weight 8kg
Machine Size
Machine size width x depth) 1,370 x 2,400 mm
Machine size (height) 2,400 mm
Machine weight approx. 3,000 kg
