Thanks to the advent of real-time production software and hardware, getting the most out of a shop floor environment is just a click away. When multiple machines are connected on a single network, manufacturers can use data-monitoring software to store and analyze high volumes of actionable machine data in real time, eliminating the need for manual data collection.

But collecting real-time data is just the first step. Manufacturers must be able to manage the data and turn it into actionable results, troubleshooting workflow efficiencies and uptime problems. Any shop, large or small, can benefit from production monitoring software. It can provide detail about part counts, cycle time and tool life, and can share production monitoring and status data collected directly from the machines. This software enables shop personnel to react quickly when bottlenecks occur, ultimately preventing downtime. They can reference historical data later to problem-solve or to monitor the need for machine maintenance.
  • 1

    Work Scheduling

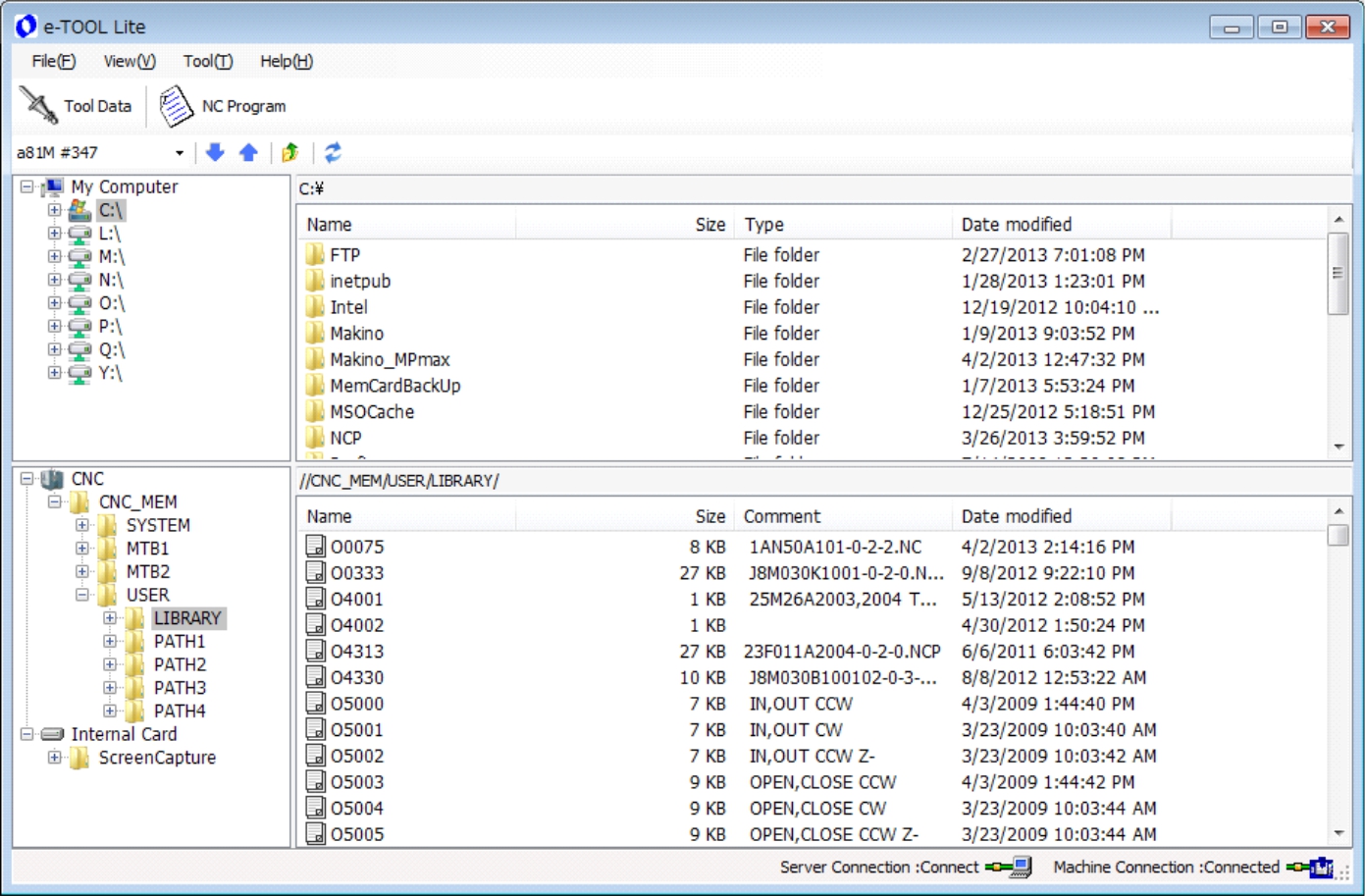

    Defines a part as well as the group of NC programs needed to make that part. The remote monitoring system scans the programs and then determines whether the machine has the tools it needs to make that part. If it doesn't, the system notifies the operator and shares what tools it needs.

    Makino.ClickToEnlarge

  • 2

    Tool Data Management

    Monitors tool length, diameter,offset and alarm data.This actionable data can help maximize tooling life cycle. It also helps the system know what tools are available at each machine. Manufacturers can use the data to find replacement tools before the process stops due to tool shortage.

    Makino.ClickToEnlarge

  • 3

    Alarms Status

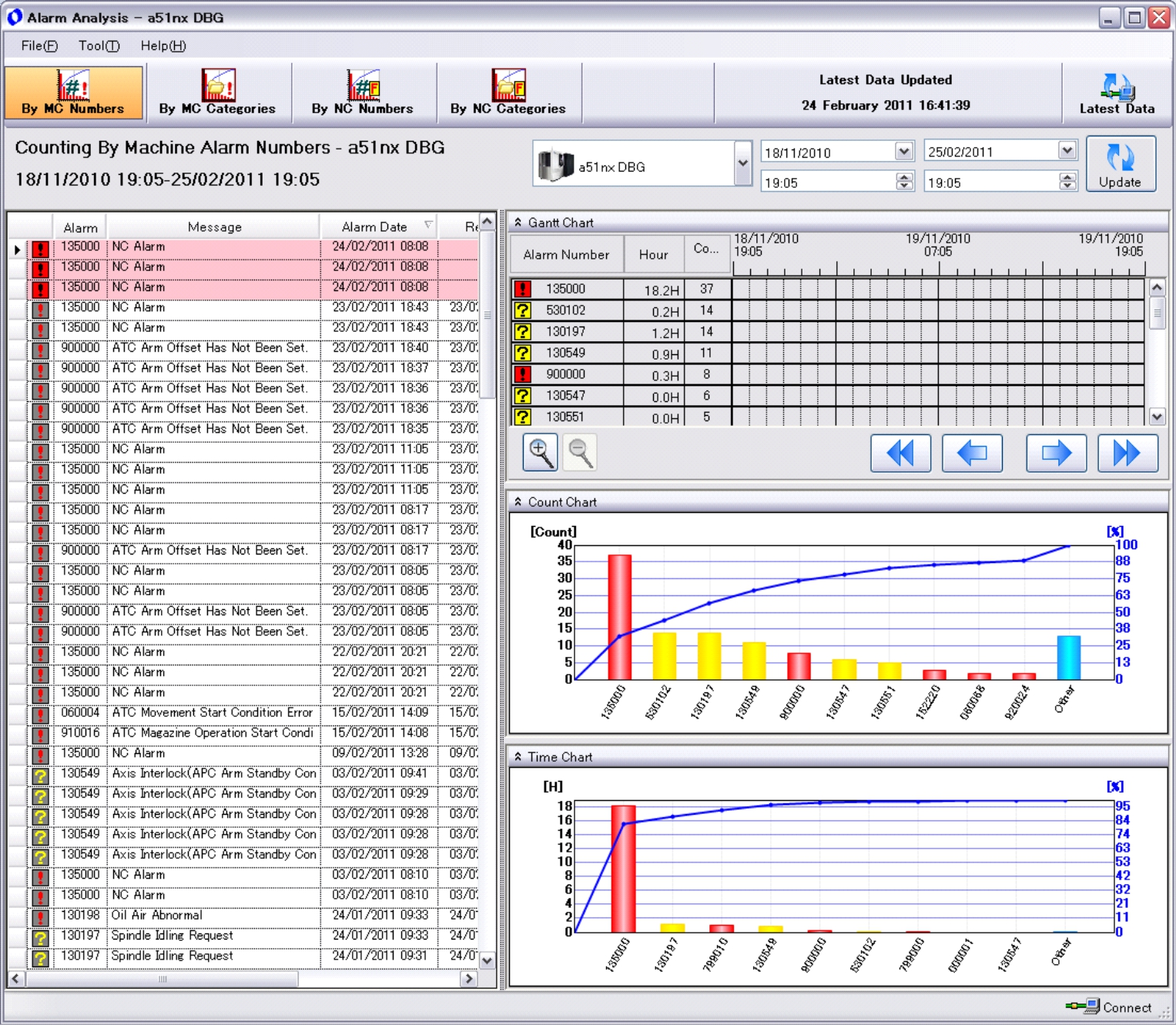

    Real time data monitoring tracks every occurrence of each alarm on each machine. Personnel can bring up details of an alarm and its history, or see the top 10 alarms that went off in a specific time period. Personnel can also see the alarms that have caused the most downtime. This provides insight into issues with the machine so users can start proactive maintenance for alarms whose frequency have increased over time.

    Makino.ClickToEnlarge

  • 4

    Email Notifications

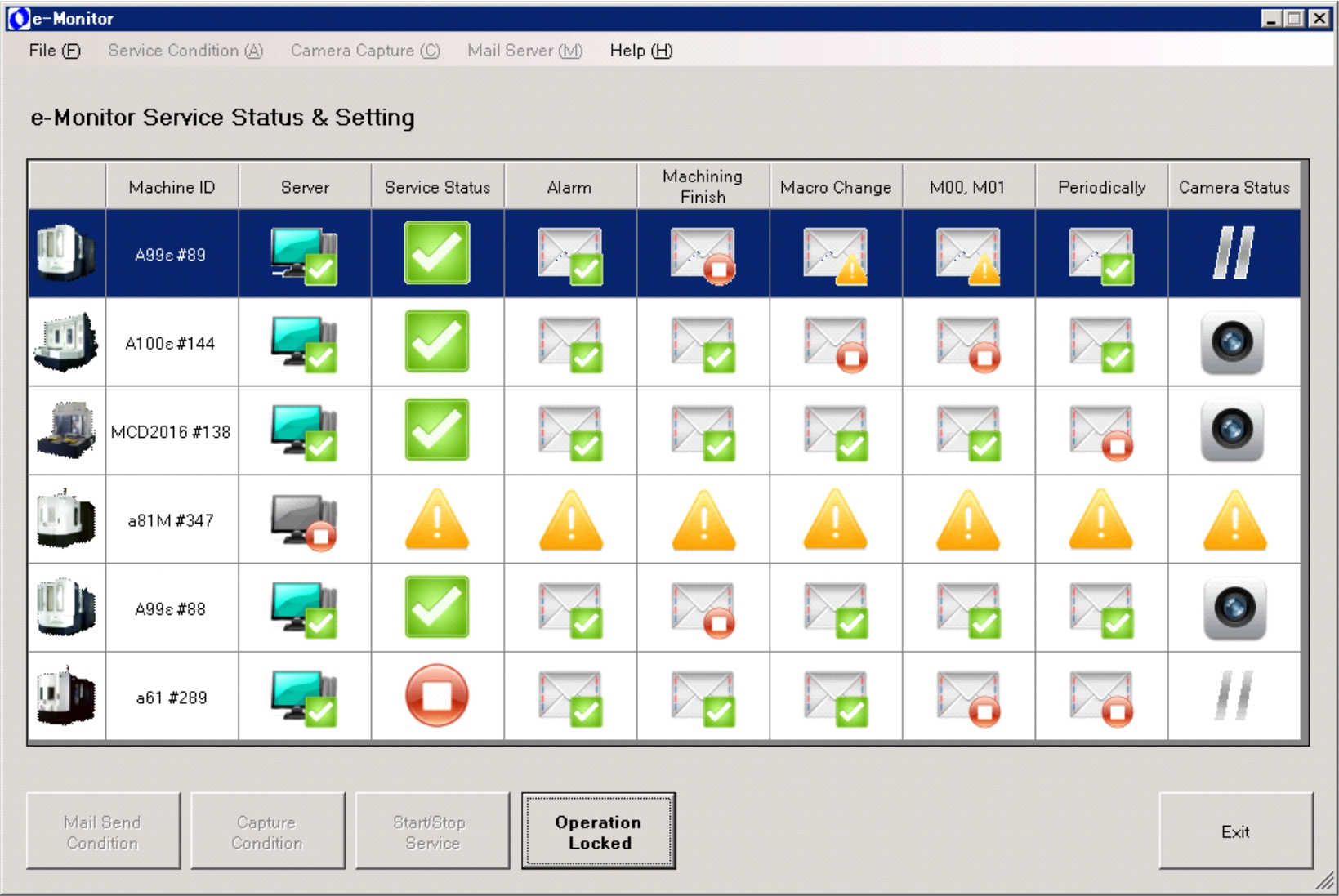

    When a machine alarm activates, e-mail and/or text messages can notify personnel. This feature enables operators to deliver detailed machine status information to their service department, including alarm descriptions and images of the work zone. This information can help them address problems as they occur, and can dramatically improve productivity and process control. Personnel can choose to get notifications in the office, on the road or at home and across a variety of devices. As with all remote communications, a company's IT department typically determines how and where this accessibility occurs.

    Makino.ClickToEnlarge

  • 5

    Machine Utilization

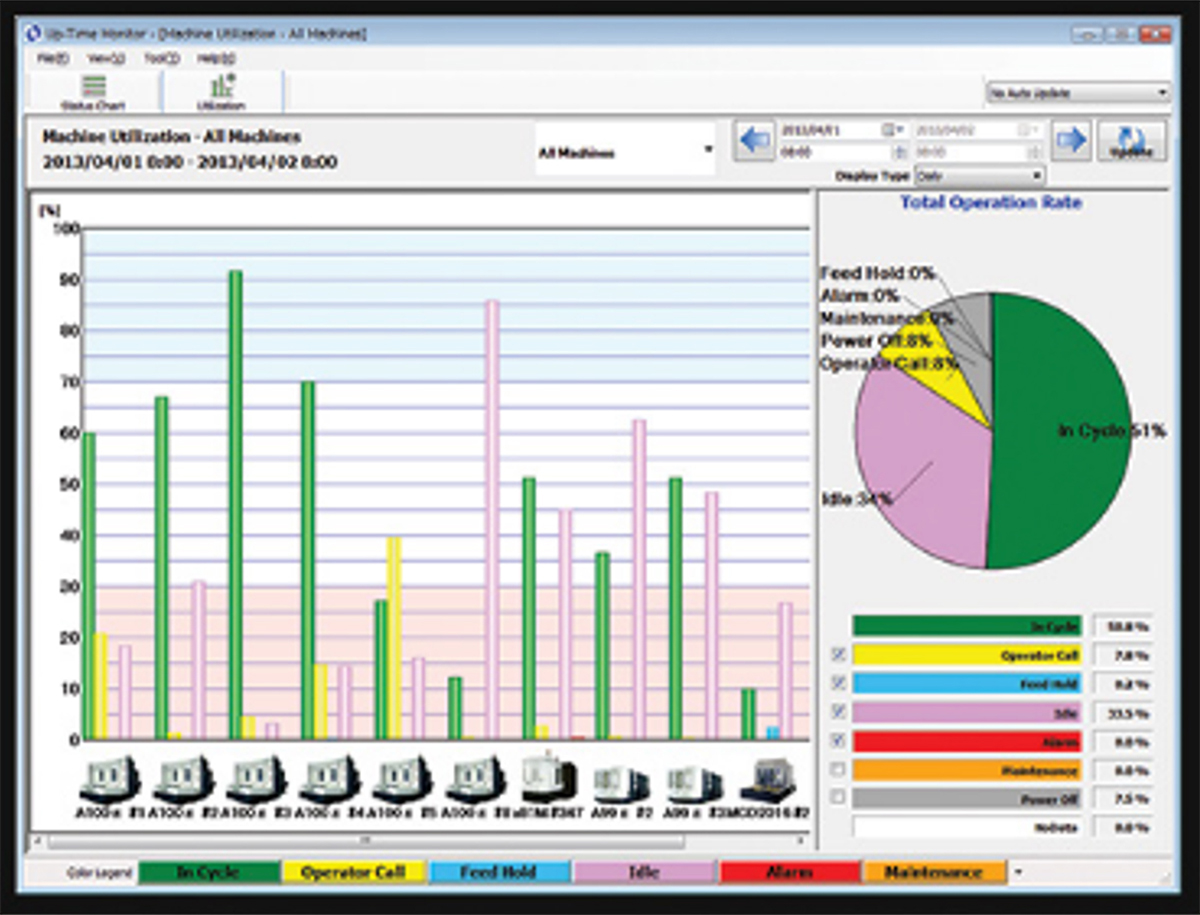

    Displays how much time the machine has been in cycle or out of cycle during a specified time period. Also displays spindle cut time (the time the machine spindle makes chips), allowing full efficiency analysis. Keeping track of machine utilization is a key element of real-time production monitoring.

    Makino.ClickToEnlarge

  • 6

    Multiple Machine Status

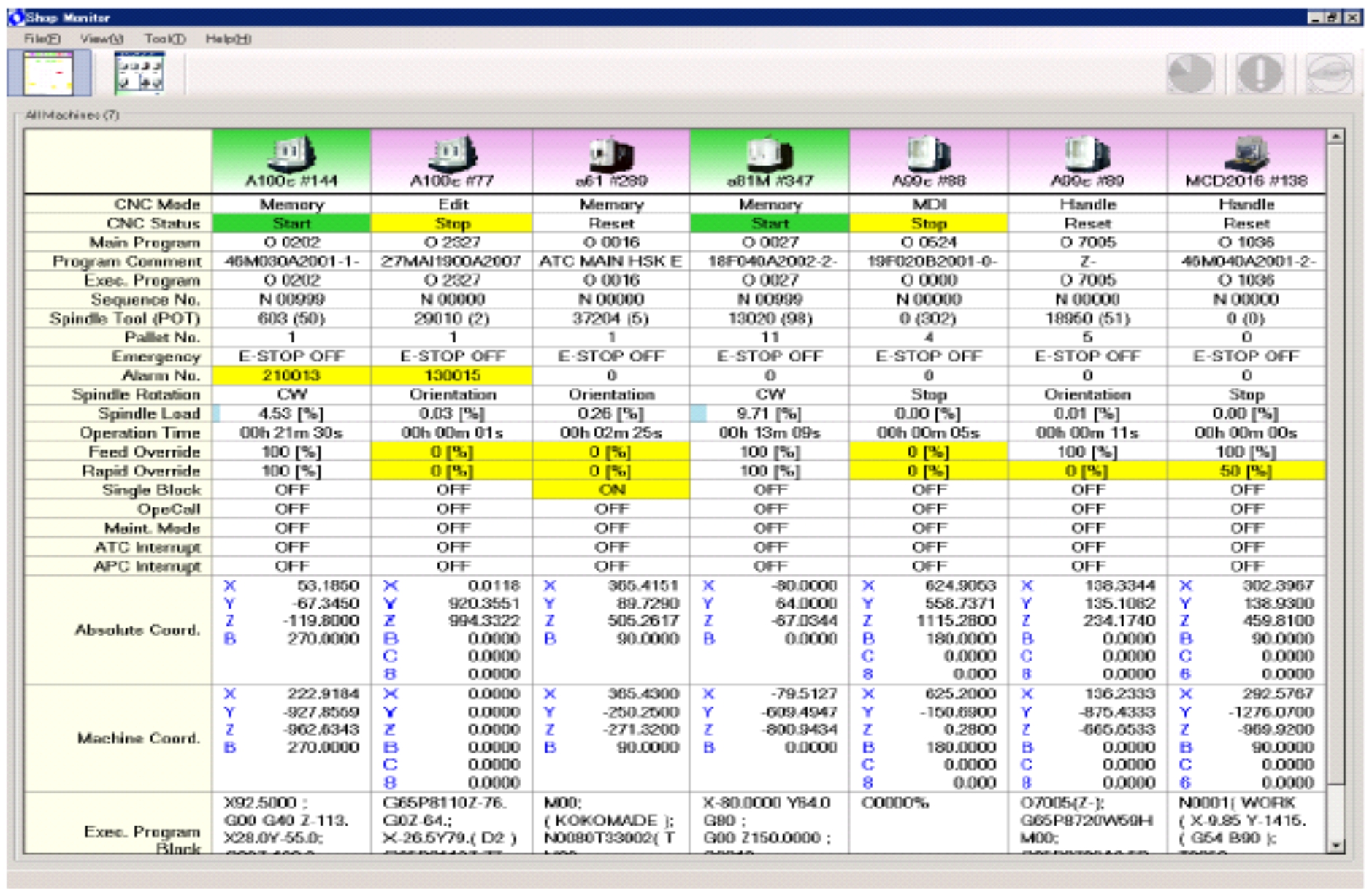

    Displays the state of each machine, specifically whether or not it is running, by displaying “in cycle,” “out of cycle” and any alarms - all shown in real time. These alerts are recorded for later analysis. The alarm analysis feature lets personnel retrieve additional information about alarms, including how often they occur.

    Makino.ClickToEnlarge

  • 7

    Camera Monitoring

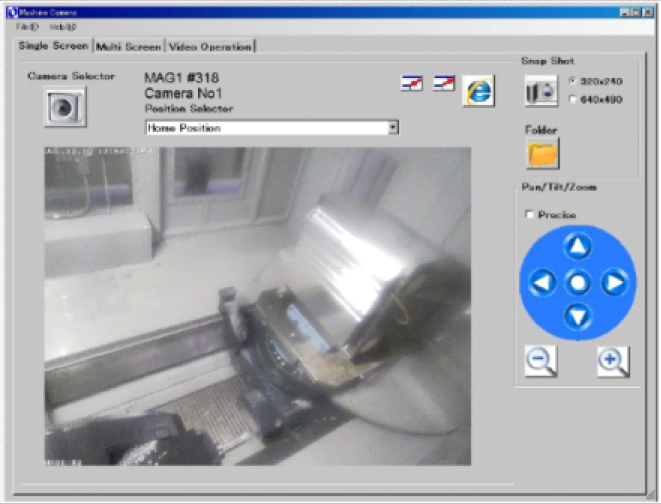

    On camera-equipped machines, personnel can capture an internal view of the work zone—making it easier to solve processing errors before they affect part quality, and helpful in the event of repair. Operators and management can use remote viewing to track and respond to processes as they occur, without interrupting other day-to-day activities. A company's IT department can determine the extent of remote network monitoring for personnel based on security protocols, specifically whether to allow it on laptops, tablets or smartphones.

    Makino.ClickToEnlarge

  • 8

    Result Viewer

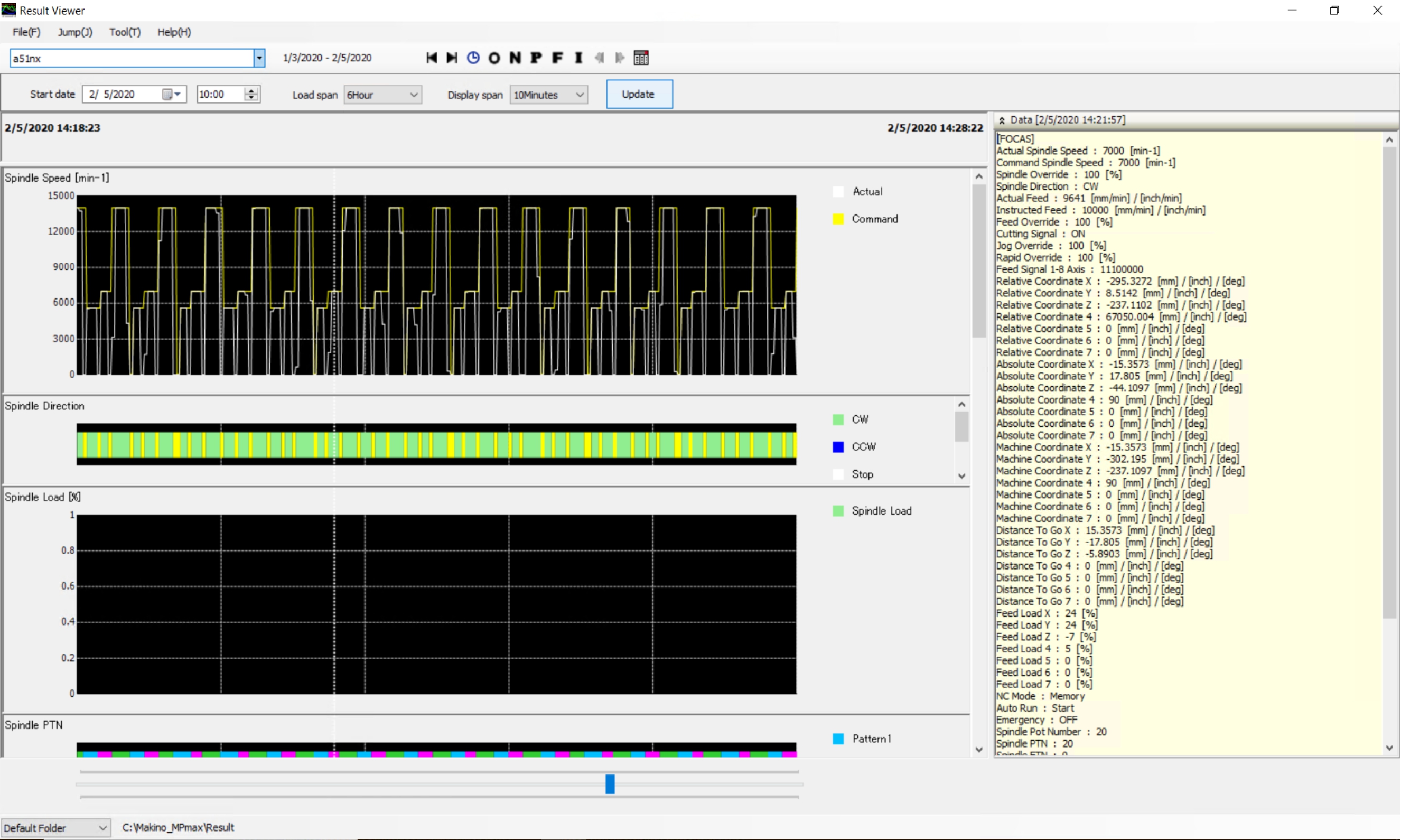

    Tracks spindle load, axis loads, feed/speed, active program, spindle tool, alarms and other factors related to machine operation. The data is recorded and archived, and users can sort by spindle tool number, alarm number and active program. That way, if there's a performance problem or alarm, the data can lead to accurate resolutions. Additionally, if there is a spindle incident, personnel can see exactly where it happened in the program. Some types of software record the incident to the exact line number in the NC program where it happened, helping the operator easily adjust the cutting parameters.

    Makino.ClickToEnlarge

  • 1

    Work Scheduling

    Defines a part as well as the group of NC programs needed to make that part. The remote monitoring system scans the programs and then determines whether the machine has the tools it needs to make that part. If it doesn't, the system notifies the operator and shares what tools it needs.

  • 2

    Tool Data Management

    Monitors tool length, diameter,offset and alarm data.This actionable data can help maximize tooling life cycle. It also helps the system know what tools are available at each machine. Manufacturers can use the data to find replacement tools before the process stops due to tool shortage.

  • 3

    Alarms Status

    Real time data monitoring tracks every occurrence of each alarm on each machine. Personnel can bring up details of an alarm and its history, or see the top 10 alarms that went off in a specific time period. Personnel can also see the alarms that have caused the most downtime. This provides insight into issues with the machine so users can start proactive maintenance for alarms whose frequency have increased over time.

  • 4

    Email Notifications

    When a machine alarm activates, e-mail and/or text messages can notify personnel. This feature enables operators to deliver detailed machine status information to their service department, including alarm descriptions and images of the work zone. This information can help them address problems as they occur, and can dramatically improve productivity and process control. Personnel can choose to get notifications in the office, on the road or at home and across a variety of devices. As with all remote communications, a company's IT department typically determines how and where this accessibility occurs.

  • 5

    Machine Utilization

    Displays how much time the machine has been in cycle or out of cycle during a specified time period. Also displays spindle cut time (the time the machine spindle makes chips), allowing full efficiency analysis. Keeping track of machine utilization is a key element of real-time production monitoring.

  • 6

    Multiple Machine Status

    Displays the state of each machine, specifically whether or not it is running, by displaying “in cycle,” “out of cycle” and any alarms - all shown in real time. These alerts are recorded for later analysis. The alarm analysis feature lets personnel retrieve additional information about alarms, including how often they occur.

  • 7

    Camera Monitoring

    On camera-equipped machines, personnel can capture an internal view of the work zone—making it easier to solve processing errors before they affect part quality, and helpful in the event of repair. Operators and management can use remote viewing to track and respond to processes as they occur, without interrupting other day-to-day activities. A company's IT department can determine the extent of remote network monitoring for personnel based on security protocols, specifically whether to allow it on laptops, tablets or smartphones.

  • 8

    Result Viewer

    Tracks spindle load, axis loads, feed/speed, active program, spindle tool, alarms and other factors related to machine operation. The data is recorded and archived, and users can sort by spindle tool number, alarm number and active program. That way, if there's a performance problem or alarm, the data can lead to accurate resolutions. Additionally, if there is a spindle incident, personnel can see exactly where it happened in the program. Some types of software record the incident to the exact line number in the NC program where it happened, helping the operator easily adjust the cutting parameters.

Makino’s MPmax™ is proprietary data management software that has analysis tools and capability to be the central hub for production monitoring. Check out some of the hotspots below to see what it can do. When installing and configuring the data-monitoring software, it is important to use a supplier with expertise in both data-monitoring and machining processes. Makino has expertise in both with a large staff of applications and process engineers as well as in-house software engineers.

This white paper discusses the challenges and strategies for installing, analyzing and optimizing this resource. It discusses:
  • Data Collection Capabilities
  • Where Data Monitoring is frequently Applied
  • Implementing a Monitoring Solution
  • Analyzing Data Like A Pro
  • Adjusting Processes for Greater Efficiency
